Ultrospec 7500 UV-Vis Spectrophotometer
Previous Slide
Next Slide
Ultrospec 7500 UV-Vis Spectrophotometer
Product name
Item #
Simple to use and with all the features you need, the Ultrospec 7500 spectrophotometer is perfect for any manufacturing or production laboratory. It’s reliable, robust, and one of the most precise quality control instruments on the market.
Product name
Item #
Product name
Item #
Product name
Item #
Energy-efficient touchscreen display.
The system includes an intuitive, easy-to-use, 800×480-pixel backlit color LCD display with touch panel navigation of the instrument’s built-in firmware. When the display is off, the only power consumed is by the touch screen controller. The instrument exits sleep mode with a touch of the screen. Easier on you, and easier on the planet.
Dependable and built to last.
There’s a reason Biochrom is one of the world’s leading spectrophotometry brands: some of our customers have been using the same machine for over 20 years. No planned obsolescence here. Our level of quality, dependability, and customer service is completely unmatched.
IQ/OQ/PQ compliance available
If your lab requires IQ (Installation Qualification), OQ (Operation Qualification), or PQ (Performance Qualification) compliance, your Ultrospec 7500 can be customized to meet your needs. Contact us to learn more.
21 CFR Part 11-compliant software is also available.
All the accessories (and flexibility) you need.
Looking for one spectrophotometer that does it all? If your lab has unique needs, the optional accessories can help you customize your Ultrospec 7500 to suit them.
- Printers
- Sippers
- Heating
- Various cell accessories
- And more.
Product name
Item #
| Technical Specifications | ||
| Specification | Data | |
| Wavelength Range | 190 to 1100 nm | |
| Monochromator | 1200 lines/mm Aberration corrected concave grating | |
| Wavelength Calibration | Automatic upon switch on | |
| Beam Height | 15 mm | |
| Spectral Bandwidth | <2 nm | |
| Wavelength Accuracy | ±1 nm | |
| Wavelength Reproducibility | ±0.5 nm | |
| Light Sources | Xenon flash lamp | |
| Detector | Two silicon photodiodes | |
| Photometric Range | -3.000 to 3.000 A, 0.1 to 100000 %T | |
| Photometric Accuracy | ±0.5 % or ±0.003 A whichever is greater at 546 nm | |
| Photometric Reproducibility | ±0.5 % to 3.000 A at 546 nm | |
| Stray Light | <0.05 %T at 220 nm using NaI or at 340 nm using NaNO2 , <0.10 %T at 380 using NaNO2 ±0.01 A/h at 340 nm | |
| Stability | ±0.001 A/h at 340 nm for 0 A | |
| Noise | ±0.002 peak to peak ± 0.0005 RMS at 340 nm for 0 A | |
| Digital Output | USB Flash Drive, PC via PVC software, Optional Bluetooth | |
| Data Export | USB Flash Drive: .tsv, native PVC format | |
| Method Storage | 156 with PIN number protection | |
| Graphical Display | Yes, zoom and track function | |
| Sample ID | Yes | |
| Languages | English, German, French, Spanish, Italian, Japanese, Chinese | |
| Dimensions | 510 × 350 × 160 mm | |
| Weight | 13.00 kg | |
| Power Input | 19 VDC at max 90 VA from a supplied 100 to 240 V~, 50/60 Hz Mains Power Adapter | |
Product name
Item #
| Related Documents | ||
| Biochrom Ultrospec 7500 Brochure.pdf | DOWNLOAD BROCHURE | |
Product name
Item #
| Related Softwares | ||
 |
Instrument HomescreenWith quick access to common applications from the homescreen, users are always just a few clicks away from the next set of sample readings. |
|
 |

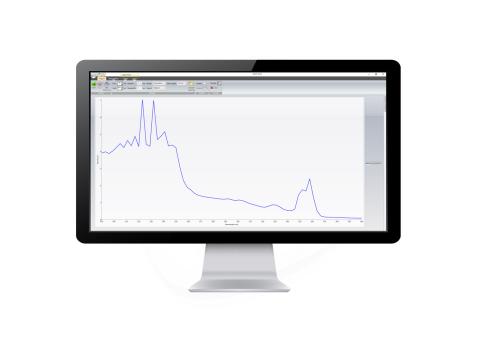

Powerful Onboard AnalysisColor-coded sample overlays allow for quick visual analysis of multiple sample reads, along with zoom and track functionality for more in depth peak analysis. |
|
Product name
Item #
Ultrospec 7500
Item #:
80-2140-60
Ultrospec 7500, includes Power Adapter, Sample Cuvettes, Quick Start Guide
Product name
Item #
Printer Accessory Ultrospec 7500
Item #:
80-2140-62
Printer for Ultrospec 7500.
Resolution CFR
Item #:
80-7100-33
Product name
Item #
IQ/OQ Documentation for Ultrospec 7500
Item #:
80-2119-89
IQ/OQ Documentation for Ultrospec 7500.
Please contact your Biochrom representative for the service availability in your location
PQ Documentation for Ultrospec 7500
Item #:
80-2119-90
PQ Documentation for Ultrospec 7500. Please contact your Biochrom representative for the service availability in your location
